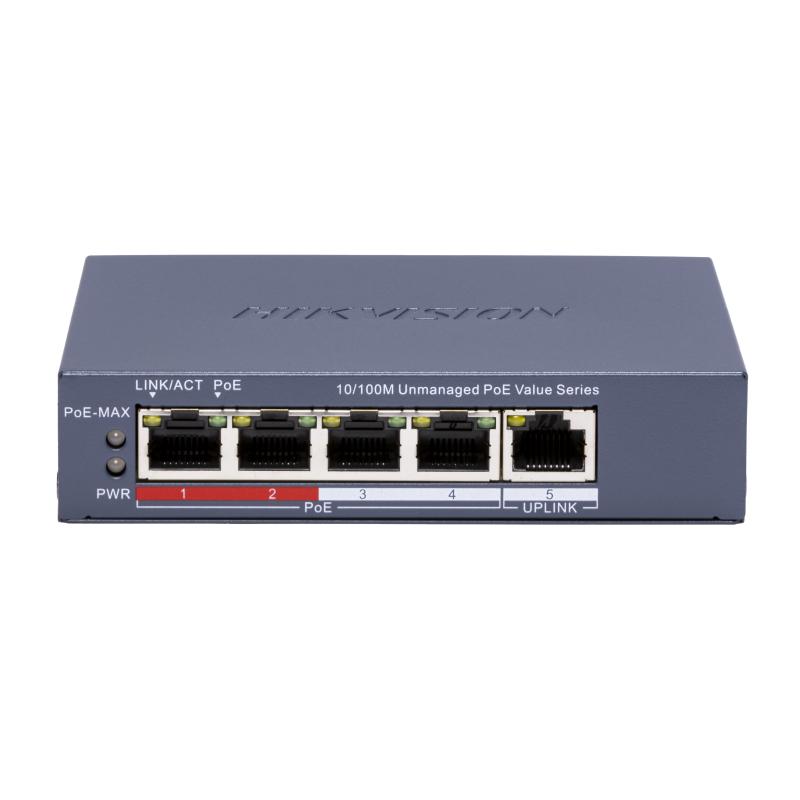

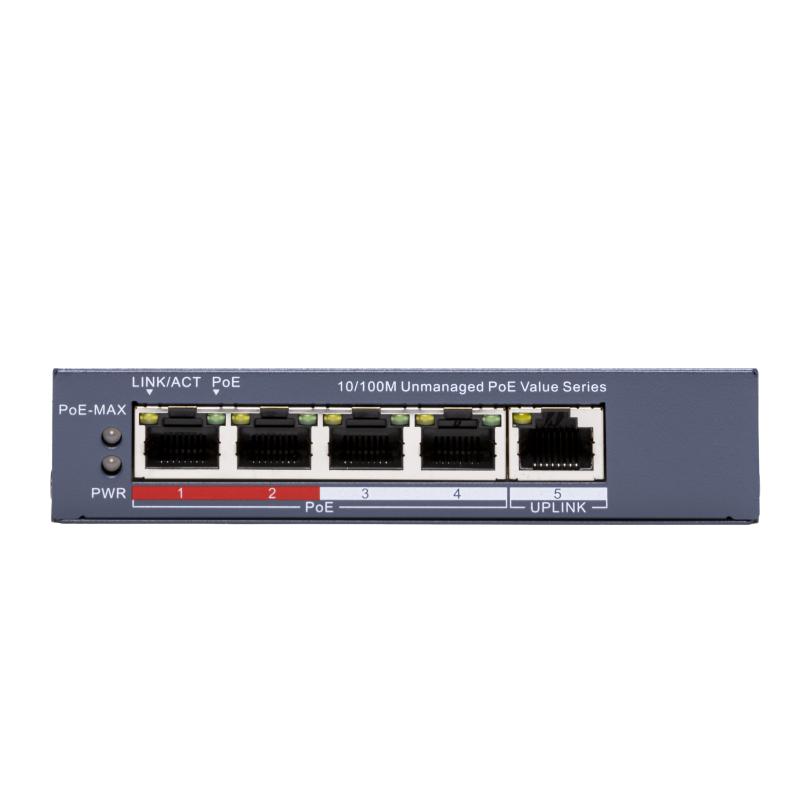

DS-3E0105P-E/M(C) 4-Port Fast Ethernet Unmanaged PoE Switch with 1 Dedicated RJ45 Uplink Port (45W Total PoE Budget+300m Ultra-Long Range Extension+6KV Heavy Surge Protection)

Overview – Compact and Reliable Power Distribution for Small-Scale IP Surveillance Grids

The Hikvision DS-3E0105P-E/M(C) Unmanaged PoE Switch serves as an ultra-compact, cost-effective power delivery node engineered for small business offices, retail shops, and residential video surveillance setups. Standard entry-level network hubs often lock up or drop vital data packets when managing continuous high-definition recording channels. Therefore, this smart switch features an optimized internal 1 Gbps switching capacity. Consequently, it guarantees smooth, glitch-free video streaming.

This space-saving deployment solution comes equipped with 4 Fast Ethernet PoE ports and 1 dedicated RJ45 uplink port. The standalone uplink channel enables installers to bridge high-speed local data lines directly into core network routers or network video recorders without sacrificing any PoE ports. Additionally, its rugged steel chassis features a specialized fanless cooling design. This makes it completely silent and highly suitable for desktop placements or clean wall-mount installations.

Moreover, safeguarding your field hardware investment is completely simplified through intelligent internal PoE power management. When the total power consumption of connected cameras nears the overall system limit, the built-in circuitry automatically balances power distribution. For instance, it intelligently priority-manages the remaining current to extend the switch’s lifetime. Finally, an integrated hardware-level 6KV surge shield protects your interior circuits from unexpected lightning damage in harsh outdoor environments.

⚙️ Key Features – Hikvision DS-3E0105P-E/M(C) PoE Switch

• 4 Fast Ethernet PoE Ports: Supplies steady electrical power and data connectivity to four distributed IP devices or security cameras simultaneously.

• Dedicated RJ45 Uplink Port: Integrates a standalone network interface to connect safely with main routers without wasting internal PoE capacity.

• Intelligent PoE Management: Monitors power allocation across all channels automatically to protect the system from unexpected electrical overloads.

• 300m Long Range Extension: Features a specialized manual toggle to boost maximum power and data transmission up to 300 meters.

• 6KV Heavy Lightning Shield: Built with strong internal surge immunity to defend valuable core circuits from severe electrical spikes.

• Silent Fanless Metal Shell: Constructed with a high-strength, passive-cooling metallic frame designed for quiet and maintenance-free operation.

📊 Key Specifications – Hikvision DS-3E0105P-E/M(C) PoE Switch

• Product Type: 4-Port Fast Ethernet Unmanaged PoE Switch with 1 Dedicated Uplink Port

• Brand: Hikvision

• Model Number: DS-3E0105P-E/M(C)

• Total Interfaces: 4 × 10/100 Mbps PoE Ports, 1 × 10/100 Mbps RJ45 Uplink Port

• Switching Fabric Capacity: Reliable 1 Gbps internal hardware processing bandwidth

• Packet Forwarding Rate: Efficient 0.744 Mpps wire-speed routing performance

• MAC Address Table Size: 2K capacity with automated self-learning and aging for terminal equipment

• Internal Data Buffer Cache: 768 Kbits packet cache memory to stabilize incoming video streams

Electrical, Software & Structural Profile

• PoE Standard Compliance: Fully matches standard IEEE 802.3af and IEEE 802.3at power distribution rules

• Total PoE Power Allocation: 45W shared budget (Supplies up to 30 Watts maximum per individual hardware port)

• PoE Power Pin Assignment: 4-pin end-span delivery mapping using pins 1/2(-) and 3/6(+)

• Long Range Extension Support: Ports 1 to 4 support ultra-long network data runs up to 300 meters

• Data Switching Architecture: Low-latency Store-and-Forward processing matrix with Auto-MDI/MDIX cable detection

• Power Input Requirements: 54V DC external power adapter input (Draws a continuous 0.92A)

• System Energy Draw: 50W maximum power draw under full load (Only pulls 5W on idle standby)

• Hardware Packing Weight: Ultra-light unit net weight of 0.2 kg (Total shipping gross weight of 0.5 kg)

• Official Safety Certifications: CE-EMC, RCM, IC, CB, CE-LVD, UL, CE-RoHS, WEEE, and REACH

⭐ Why Choose the Hikvision DS-3E0105P-E/M(C) PoE Switch?

Opting for this unmanaged 4-port switch is an excellent, value-driven choice for properties looking to install targeted camera coverage. First, the one-click 300m ultra-long range transmission feature eliminates the need for expensive inline signal repeaters. As a result, you can easily wire up detached boundary fences, guard booths, or far-end parking garages using standard network cabling.

In addition, the integrated intelligent PoE power management architecture helps avoid common system failures. For example, if multiple high-draw outdoor infrared cameras start drawing maximum power simultaneously at dusk, the switch controls its output smoothly instead of short-circuiting. Furthermore, the compact 12cm metal housing allows you to hide the unit discreetly inside small ceiling enclosures or compact counter desks.

Consequently, this unmanaged switch removes the setup headaches and software bugs common in overly complex enterprise networks. It matches robust, lightning-safe circuit shielding with user-friendly plug-and-play operation. Thus, your security streams stay perfectly stable, your hardware deployment costs drop significantly, and your commercial premises run smoothly and securely without requiring continuous manual maintenance.
