Hikvision DS-KAS261 Complete Fingerprint Access Control Terminal Kit (DS-K1T804MF Master Unit + 280kg Magnetic Lock + LZ Bracket + Exit Button + Wi-Fi & TCP/IP Dual Network)

Overview – Deep Learning Face Recognition & Complete Gateway Management

The Hikvision DS-KAS261 Kit provides touchless workplace entry and automated payroll tracking. Specifically, this terminal runs an advanced deep learning algorithm. Consequently, it completes a fingerprint validation match in less than 1.0 second. This high processing speed effectively eliminates long queues at your office entrance. Therefore, your staff can check in without any frustrating bottlenecks during peak hours.

The master console features a clear 2.4-inch color LCD-TFT display screen. Additionally, it carries a highly precise optical fingerprint reader module. This reader configuration relies on advanced algorithmic template scanning. Meanwhile, the system deploys built-in physical security monitoring. As a result, it accurately blocks fake entries while tracking duress and tamper signals. Thus, your office perimeter stays continuously protected against unauthorized visitors.

Furthermore, this versatile unit works as a true hybrid gateway system. Specifically, the Hikvision DS-KAS261 Kit includes an integrated onboard lock control relay. This structural setup allows it to function as a single door access panel and time clock simultaneously. Consequently, you can secure physical doorways while gathering accurate attendance data. This unified approach lowers your total electronic hardware deployment costs.

System management is simple because of full network client configuration support. Specifically, you can manage settings using a standard desktop program or mobile service on your network. Therefore, administrators can configure complex employee permissions quickly. You can add workers, assign card profiles, and edit shifts easily. Consequently, this interface makes system configuration fast and user-friendly.

Additionally, the terminal supports professional networking architectures. It communicates using standard network ISAPI and ISUP 5.0 protocols. Because of this, it links smoothly with central control applications. Specifically, you can connect it directly to iVMS-4200 software or the Hik-Connect mobile client. Therefore, security managers can execute remote door release commands from any location.

Moreover, the Hikvision DS-KAS261 Kit functions reliably during standalone operations. It caches records locally if your network link goes offline. After that, managers can download reports using a standard flash drive. The internal system automatically formats your data into standard Excel sheets. Consequently, your HR department can process payroll quickly without manual tracking logs.

⚙️ Key Features

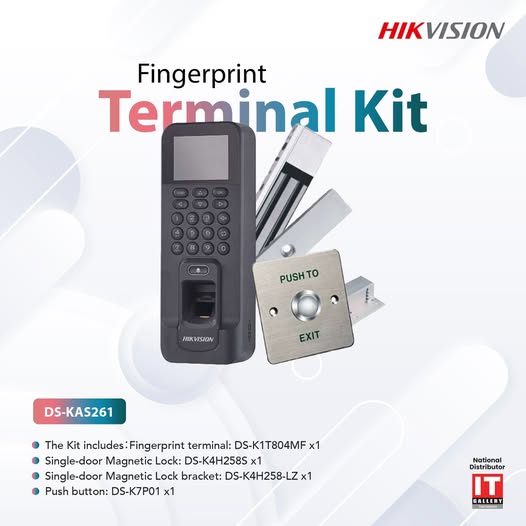

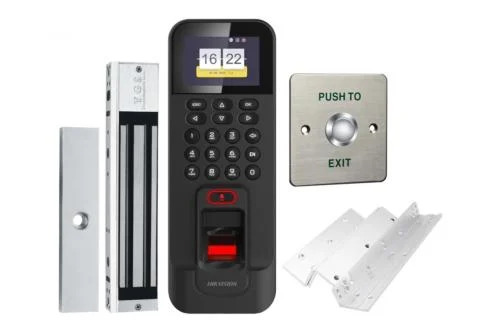

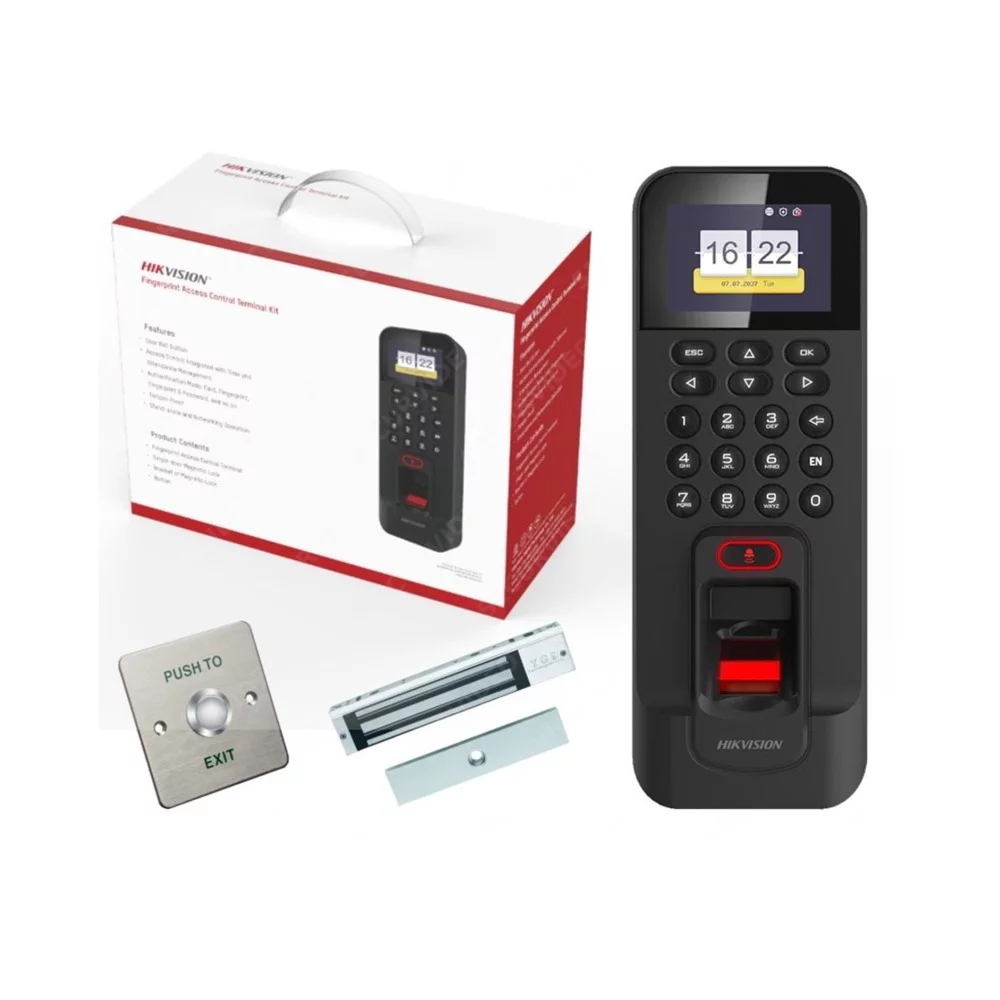

• Complete All-In-One Box: Out-of-the-box system kit packing a master biometric console, an electromagnetic lock, matching framing brackets, and a manual release button.

• Dual Network Transmission: Implements a standard RJ-45 wired Fast Ethernet port paired alongside an integrated Wi-Fi networking client module.

• Heavy Duty Door Holding: The bundled magnetic lock exerts up to 280 kg (617 lbs) of raw linear holding thrust to secure physical entrance perimeters.

• 13.56 MHz MiFare Reading: Contains an internal card authentication reader tracking secure MiFare 1K/4K contactless smart cards and keyfobs.

• Comprehensive Peripheral Bus: Incorporates standard Wiegand (W26/W34) interface ports alongside an RS-485 data communications channel.

• Local Shift Automation: Supports direct standalone processing for up to 32 normal rosters and 32 specialized man-hour shifts.

📊 Key Specifications

• Product Class: Complete Single-Door Fingerprint Access Control and Time Attendance Security System Kit

• Manufacturer Brand: Hikvision

• Model Designation: DS-KAS261

• Official Product Identifier: MPN: DS-KAS261

• Operating System Platform: Secure, embedded Linux architectural firmware

• Display Screen Layout: 2.4-inch color LCD-TFT screen featuring a 320 × 240 pixel resolution

• Master Biometric Terminal: 1 × DS-K1T804MF Pro Series Fingerprint & Card Reader Console

• Electromagnetic Lock Asset: 1 × DS-K4H258S Single-Door Magnetic Lock delivering 280 kg linear thrust

• Mounting Bracket Asset: 1 × DS-K4H258-LZ Matching L and Z structural installation bracket profile

• Physical Exit Request Button: 1 × DS-K7P01 Metal push-button panel with an aluminum alloy surface

Memory, Network & Electrical Metrics

• System Storage Caps: Holds up to 3,000 cards, 3,000 fingerprints (up to 10 per person), and 100,000 event records

• Proximity Card Protocol: Onboard wireless reader module operating at a standard 13.56 MHz MiFare frequency

• Card Reading Range: Responsive proximity detection distance spanning from 0 cm up to 5.0 cm

• Wired Interface Port: 1 × RJ-45, 10/100 Mbps self-adaptive Fast Ethernet TCP/IP connection

• Onboard Access I/O Terminals: 1 × Lock Relay, 1 × Exit Button Input, 1 × Door Contact Input, 1 × Alarm Input, 1 × Alarm Output

• Data Communications Bus: 1 × RS-485 interface, 1 × Wiegand (W26/W34) output and input, and 1 × USB 2.0 interface

• Power Input Requirements: 12V DC, 2A power architecture framework

• Master Reader Dimensions: 205 mm × 76.5 mm × 37 mm (8.07″ × 3.01″ × 1.46″)

• Operating Temperature Range: Built for stable operation between -10 °C and +55 °C

⭐ Why Choose the DS-KAS261 Kit?

Choosing the Hikvision DS-KAS261 Kit upgrades your office security and staff clocking workflows. The hands-free biometric reader eliminates common fingerprint errors caused by dust, moisture, or heavy physical labor. Therefore, workers experience smooth entries without any registration delays. Furthermore, the combined hybrid design removes the need to purchase separate attendance clocks and electronic door panels.

Additionally, browser-based management simplifies maintenance for your technical team. You can pull records or adjust schedules from any computer on your network. Meanwhile, the standalone USB storage buffer safeguards your data if your network disconnects. Consequently, this reliable hardware architecture prevents missing hours or tracking gaps during unforeseen power outages.

Ultimately, this terminal stops buddy-punching and entry tracking issues across your business. It balances high-performance AI imaging, an optical fingerprint reader, and lock controllers in one slim casing. Investing in this value-series device gives you premium enterprise security functions at a highly practical price point. Thus, you can maintain corporate accountability and protect company property effectively.
