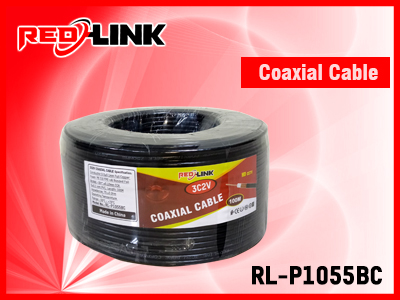

Redlink 3C2V Pure Copper Coaxial Cable (75 Ohm, 0.5mm OFC Pure Copper Core + Bonded Yellow Foil + 96 Strand CCA Braid 100m, 200m & 300m Rolls)

⚡ Overview – Redlink 3C2V Pure Copper Coaxial Cable Series

Are you looking for a high-performance coaxial cable series to handle clear CCTV video transmission, satellite TV setups, or domestic antenna installations across various distances?

Consequently, the Redlink 3C2V Pure Copper Coaxial Cable Series delivers exceptional signal integrity with minimal interference. Built with a solid 100% pure oxygen-free copper conductor core and dense multi-layer shielding, this cable prevents signal attenuation and electromagnetic interference over short and long cable runs.

Furthermore, you can select between 100m (RL-P1055BC), 200m (RL-P2055BC), and 300m (RL-P3055BC) factory rolls online in Sri Lanka with fast islandwide delivery.

⚡ Oxygen-Free Pure Copper Conductor Core

First, high-purity copper core material ensures maximum signal conductivity and clarity for video and radio frequency signals.

In addition, the central conductor features 0.5 ± 0.1mm oxygen-free bare copper (OFC). Thus, it provides superior electrical transmission compared to standard steel-clad alternatives.

As a result, your analog CCTV camera feeds, HD video signals, and TV antenna lines stream smoothly without video ghosting, signal noise, or dropouts.

🏢 High-Density Shielding & 75 Ohm Impedance

Additionally, protect your video feeds against heavy electromagnetic interference and radio frequency noise.

Specifically, it features a 3.0mm Foam PE dielectric insulator combined with Bonded Yellow Foil and a heavy-duty 96-strand (96 * 0.12mm) Copper-Clad Aluminum braid. Consequently, this double-shielded design keeps the 75 ± 3 Ohm impedance stable across all frequencies.

Furthermore, its durable 5.0 ± 0.1mm black PVC outer jacket resists physical wear and operates reliably in temperatures ranging from -30°C to +70°C.

🔋 Available in 100m, 200m & 300m Factory Coils

Furthermore, you can select the exact roll size needed for your project scale on elecshop.lk:

• 100m Roll (Model: RL-P1055BC): Perfect for small residential CCTV setups and standard home TV antenna wiring.

• 200m Roll (Model: RL-P2055BC): Ideal for medium-scale commercial installations and multi-camera security jobs.

• 300m Roll (Model: RL-P3055BC): Designed for bulk wiring, large multi-story buildings, and long-distance cable runs.

Finally, Redlink manufactures these cables to precise quality standards, making them a top choice for CCTV technicians, AV installers, and electricians across Sri Lanka.

⚙️ Key Features of Redlink 3C2V Coaxial Cable

• Pure Copper Core: 0.5 ± 0.1mm oxygen-free bare copper conductor delivers minimal signal attenuation.

• Enhanced 96-Strand Shielding: Bonded yellow foil plus high-density 96*0.12mm CCA braid shield block RF interference.

• Standard 75 Ohm Impedance: Perfectly matched for 75 ± 3 Ohm CCTV cameras, TV tuners, and video equipment.

• Foam PE Dielectric: 3.0 FPE layer maintains constant impedance and physical spacing.

• Durable PVC Outer Jacket: 5.0 ± 0.1mm black PVC sheath protects internal shielding from wear and weather.

• Wide Operating Temperature: Performs reliably from -30°C up to +70°C environments.

• 3 Roll Length Options: Available in 100m, 200m, and 300m coils to fit any installation scope.

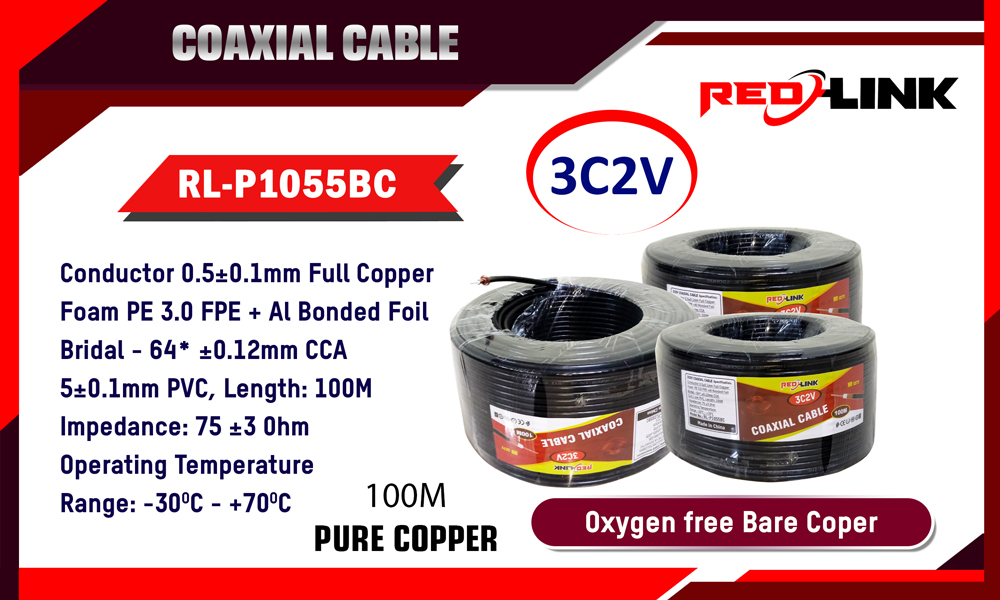

📊 Key Specifications

• Brand: Redlink

• Model Numbers: RL-P1055BC (100m) / RL-P2055BC (200m) / RL-P3055BC (300m)

• Cable Standard: 3C2V Coaxial Cable

• Center Conductor: 0.5 ± 0.1mm Oxygen-Free Bare Copper (OFC / Pure Copper)

• Dielectric Insulator: 3.0mm Foam PE (FPE)

• Inner Shield: Bonded Yellow Foil

• Outer Braid Shield: 96 * 0.12mm CCA (Copper Clad Aluminum)

• Outer Sheath: 5.0 ± 0.1mm PVC (Black)

• Impedance: 75 ± 3 Ohm

• Operating Temperature: -30°C to +70°C

• Available Roll Lengths: 100 Meters, 200 Meters, 300 Meters

• Best Uses: CCTV Camera Video Transmission, TV Antennas, Satellite Receivers, AV System Lines

🤖 Recommended Usage Guidelines

First, calculate the required wire distance from your cameras or antenna to the central DVR or TV receiver.

Next, unroll the cable smoothly from the coil to prevent kinking or twisting the inner braid shield.

After that, strip the outer 5.0mm PVC coating carefully using a coaxial wire stripper to expose the 0.5mm copper core and braid shield.

Finally, terminate both ends securely with compatible 3C2V BNC connectors, F-type plugs, or TV connectors.

Therefore, order your Redlink 3C2V Coaxial Cable (RL-P1055BC / RL-P2055BC / RL-P3055BC) today on elecshop.lk for fast islandwide delivery across Sri Lanka!
