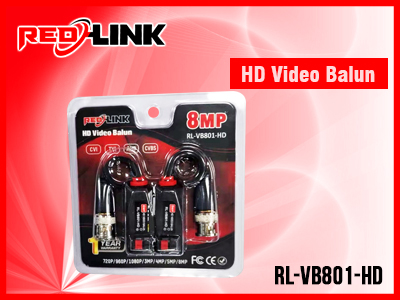

RED LINK 8MP Ultra HD Video Balun Transceiver (RL-VB801-HD Pair – Passive BNC Male to UTP Cat5e/Cat6 Adapter for Up to 4K 8MP CCTV Systems)

⚡ Overview – 4K Ultra HD CCTV Video Transmission over Twisted Pair Cable

Are you upgrading to high-resolution 4K 8MP security cameras and looking for crystal-clear, real-time video transmission over network cables? Consequently, the RED LINK 8.0MP Ultra HD Video Balun Transceiver (RL-VB801-HD) delivers unmatched noise rejection. Also, it offers high-bandwidth transmission without external power. Furthermore, you can purchase this original pair online in Sri Lanka with fast islandwide delivery and a 1-Year Warranty.

🔌 Universal Resolution Compatibility Up to 8MP (4K Ultra HD)

Designed for top-tier surveillance systems, this passive HD video balun supports the complete range of HD camera resolutions. These include: 720p, 960p, 1080p, 3MP, 4MP, 5MP, and 8MP (4K).

As a result, it works seamlessly across HD-CVI, HD-TVI, AHD, and CVBS analog video formats. This allows easy integration with multi-channel 4K DVRs without image loss or lag.

🧱 Stackable ABS Plastic Casing & Superior Noise Immunity

Featuring a compact ABS engineering plastic housing, these baluns are specifically designed to be stackable. As a result, they keep multi-channel DVR racks and junction boxes exceptionally neat and organized.

Additionally, with an impressive 60dB crosstalk and noise immunity combined with an advanced Wave Filter design, it effectively eliminates background electrical interference. It also removes ghosting over UTP Cat5e/Cat6 wiring.

🛡️ Grade III Lightning Protection & Solid State TVS Suppressor

Protect your valuable DVR and 4K camera equipment against unexpected voltage spikes and electrical storms. Built with Grade III Lightning Protection and an integrated Solid State TVS (Transient Voltage Suppressor), these baluns guard against sudden static and power surges.

Finally, the tool-free push-terminal design ensures fast, reliable, and solderless installation for field technicians.

⚙️ Key Features of RED LINK 8.0MP Ultra HD Video Balun (RL-VB801-HD)

• 4K 8MP Resolution Support: Engineered for high-definition 720p, 960p, 1080p, 3MP, 4MP, 5MP, and 8MP (4K) CCTV cameras.

• Universal 4-in-1 Compatibility: Fully compatible with HD-CVI, HD-TVI, AHD, and CVBS analog cameras.

• Stackable Design: Compact ABS engineering plastic body allows neat side-by-side stacking at the DVR.

• Exceptional Interference Rejection: Features 60dB crosstalk and noise immunity with an advanced Wave Filter and Anti-Static design.

• Grade III Surge & Lightning Protection: Built-in solid-state TVS (Transient Voltage Suppressor) protects devices against electrical surges.

• No Power Required: Passive operation eliminates the need for extra power adaptors.

• 1-Year Warranty: Backed by an official 1-Year warranty for reliable performance.

📊 Key Specifications

• Brand: RED LINK

• Model Code: RL-VB801-HD

• Product Type: Passive Single-Port 8MP HD Video Balun Pair

• Supported Resolutions: 720p / 960p / 1080p / 3MP / 4MP / 5MP / 8MP (4K)

• Signal Formats: HD-CVI / HD-TVI / AHD / CVBS

• Crosstalk & Noise Immunity: 60dB

• Protection Grade: Grade III Lightning Protection & Solid State TVS

• Coaxial Connector: BNC Male (75 Ohms)

• UTP Connection Type: Tool-Free Push Terminal / Cat5e / Cat6 (100 Ohms)

• Body Material: ABS Engineering Plastic (Stackable Housing)

• Warranty: 1 Year Warranty

🤖 Recommended Usage Guidelines

Plug one video balun directly into the BNC port of your 8MP camera and the second balun into your DVR channel. Press down on the push terminals to insert a single twisted pair from a Cat5e or Cat6 UTP network cable, ensuring correct positive (+) and negative (-) alignment at both ends for zero-loss 4K video.

Order your RED LINK 8MP Ultra HD Video Balun Transceiver (RL-VB801-HD Pair – Passive BNC Male to UTP Cat5e/Cat6 Adapter for Up to 4K 8MP CCTV Systems) today on elecshop.lk for fast islandwide delivery across Sri Lanka!
